Zapier- Hubspot Integration Guide

Step1: Once you’ve logged into your Hubspot account, go to Contacts, then Actions, the Edit Properties.

---



Step2: Create a new Properties Group related to call information, the click Create Property

---





Add your preferred call properties. Please see the full list of variables you can select from below in the section titles Information available in the Zapier Delacon trigger



The below information is available in the Zapier Delacon trigger:

Field Key: adwordsInfo__campaign

Adwords Campaign Name



Field Key: adwordsInfo__clicks

 Adwords Click Count



Field Key: adwordsInfo__conversionTypes

Adwords Conversion Types



Field Key: adwordsInfo__conversions

Adwords Conversion Count



Field Key: adwordsInfo__cost

Adwords Cost





Field Key: adwordsInfo__cpc

Adwords CPC count





Field Key: adwordsInfo__keywords

Adwords Keyword



Field Key: callRecording

Call Recording Url



Field Key: call_id

Call ID



Field Key: dtmf__description

DTMF Description



Field Key: dtmf__keys

DTMF Key



Field Key: info__call_date

Date of Call



Field Key: info__call_date_epoch

Call Date Since Linux Epoch (ms)



Field Key: info__call_length

Call Length (ms)



Field Key: info__call_status

Status of Call



Field Key: info__caller

Caller Phone Number



Field Key: info__dialed_number

Number dialled by caller



Field Key: info__termination_point

Termination Point



Field Key: info__time_of_call

Time of Call



Field Key: info__voicemail_left

Was a voicemail left



Field Key: location__city

City



Field Key: location__exchange

Exchange



Field Key: location__state

State



Field Key: service__service_category

Service Category



Field Key: service__service_id

Service Id



Field Key: service__service_name

Service Name



Field Key: survey__outcome

Survey Outcome



Field Key: survey__value

Survey Value



Field Key: webInfo__converted

Call Converted Status



Field Key: webInfo__device

Device



Field Key: webInfo__extra_tracking

Extra Tracking Info



Field Key: webInfo__googleClientId

Google Client Id



Field Key: webInfo__ip

IP Address



Field Key: webInfo__isp

ISP



Field Key: webInfo__keywords

Keywords



Field Key: webInfo__landing_page

Landing Page



Field Key: webInfo__page_called_from

Page Called From



Field Key: webInfo__referral

Referral



Field Key: webInfo__search_engine

Search Engine



Field Key: webInfo__search_type

Search Type



Below is an example of sample testing data:

Sample:

{



    "info": {



        "termination_point": "02912345679",



        "call_date": "13/12/2017",



        "call_length": 0,



        "call_status": "answered",



        "dialed_number": "1300000001",



        "caller": "02912345678",



        "time_of_call": null,



        "call_date_epoch": 1513163488000,



        "voicemail_left": false



    },



"callRecording": "https://vxml5.delacon.com.au/site/webui/jsp/downloadRecording_rt.jsp?file_name=filename.mp3",



    "webInfo": {



        "search_engine": "Google",



        "googleClientId": "1111111.1111111",



"landing_page": "https://www.sample.com.au/?param=value",



        "ip": "111.111.111.111",



        "isp": "Internet Service Provider",



        "extra_tracking": null,



        "search_type": "paid",



        "device": "android sm-g920i",



        "converted": "Y",



"page_called_from": "https://www.samplepage.com.au/calledfrom",



        "keywords": "+sample",



"referral": "https://www.sample.com.au/?param=value"



    },



    "service": {



        "service_id": 1234,



        "service_category": "Test Category",



        "service_name": "Test Service"



    },



    "dtmf": {



        "keys": null,



        "description": null



    },



    "call_id": 0,



    "survey": {



        "outcome": null,



        "value": 0



    },



    "location": {



        "city": "SYDNEY",



        "state": "NSW",



        "exchange": "SYDNEY"



    },



    "adwordsInfo": {



        "conversions": 0,



        "campaign": null,



        "cpc": 0,



        "conversionTypes": null,



        "cost": 0,



        "keywords": null,



        "clicks": 0



    }



}



Step3: Login to your Zapier account. Add Delacon Zapier trigger by invite. You can do this by searching in the choose a trigger app Save and Continue.

---





Step4: Connect the Delacon Master account or existing account by selecting it. Press Save and Continue.

---





New Account Configuration- please input your Delacon credentials





1. Select a Cid:



2. Skip the testing:





3. Continue with default sample:





4. Add Hubspot as an action in Zapier after Delacon Trigger





5. Create/Update a Contact





6. Connect to your HubSpot account by selecting the account and pressing continue

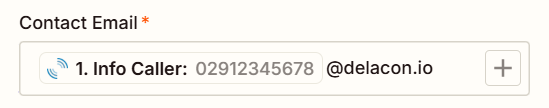

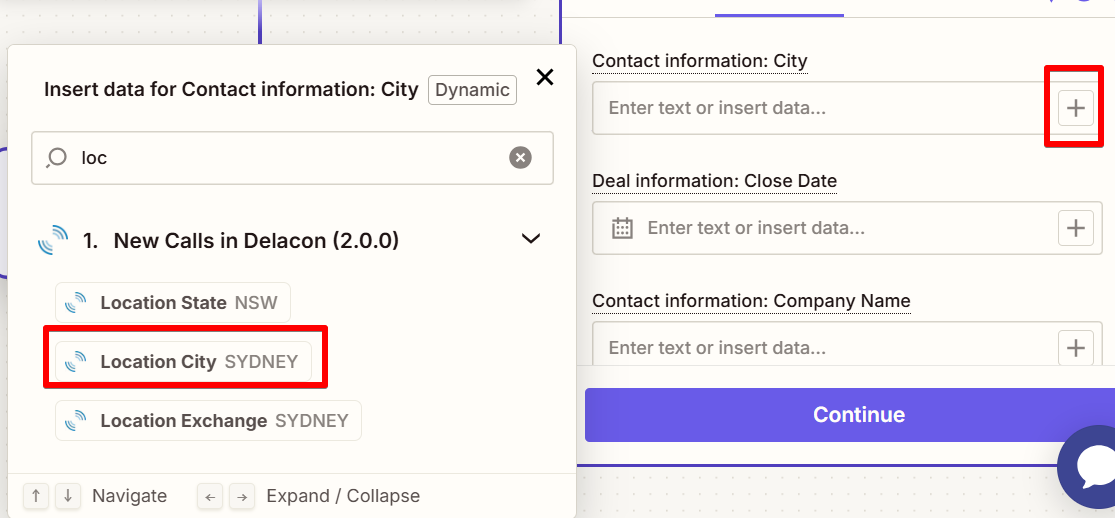

7. Find and add call information from the provided template. You can find Edit Template in the bottom left corner of the page under Actions as shown below.





8. Confirm, skip the test and click Finish





9. Name you Zap and enable it by toggling the switch to the right.





10. Make a phone call to test the integration is working





11. Your Hubspot integration is now complete and you will be able to see all call details in your Hubspot account. If you have and further questions, please don’t hesitate to contact Delacon support.
